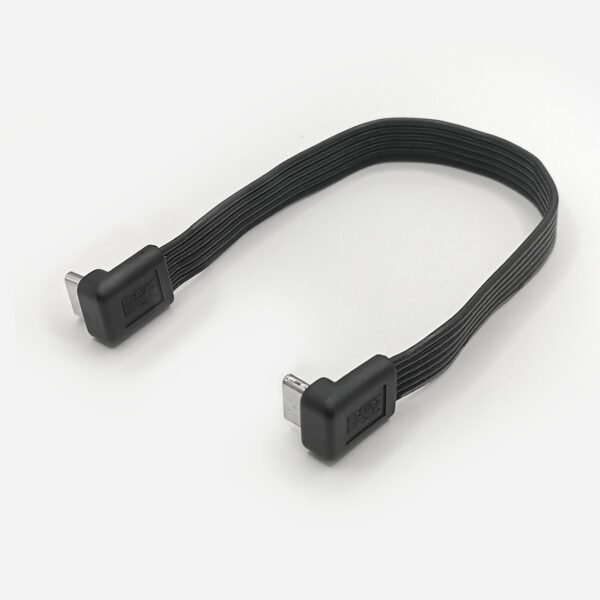

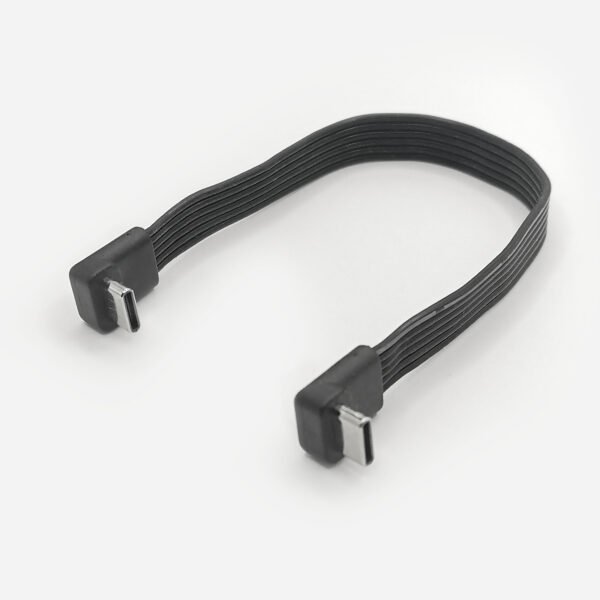

InfiLinX Modular Connection Cable

Description

Product Name: InfiLinX Modular Connection Cable
Connection System: InfiLinX modular interface
System Role: Connection between compatible CONCEPTBRICK electrical modules
Current Confirmed Application: FynoriX1511 capacity and runtime expansion
Transmission Function: Power or control signals, depending on the connected modules and configuration; future compatible applications may also support data transmission
Charging Support: No — InfiLinX does not charge connected modules
Recommended Age: 14+
Cable Length: 17 cm / 6¾ in



One Connection Framework for a Growing Modular Ecosystem

InfiLinX is a modular connection system developed for the expanding CONCEPTBRICK electrical ecosystem.

Rather than being limited to one type of component, the InfiLinX interface is designed to provide a common connection framework between compatible modules. Depending on the connected modules and configuration, it may carry power or control signals. Future compatible applications may also extend this role to data transmission.

InfiLinX is an interconnection interface, not a charging interface. Connected modules must be charged through their own designated charging ports.

Its first confirmed application is the connection of multiple FynoriX1511 energy modules. In this configuration, InfiLinX increases total available battery capacity and extends model runtime, while the main PF output remains regulated at 9 V.

As the modular electrical ecosystem develops, additional compatible applications may be introduced.

Key Features

• Part of the CONCEPTBRICK modular electrical ecosystem
• Common connection framework for compatible modules
• Carries power or control signals according to the connected configuration
• Designed to support additional modular communication functions in future applications
• Currently supports FynoriX1511 capacity expansion
• Connects multiple FynoriX1511 modules in a daisy chain
• Extends runtime in the current FynoriX1511 configuration
• Allows compatible modules to be positioned throughout a model
• Does not provide a charging function

Current Application: FynoriX1511 Capacity Expansion

In the current FynoriX1511 application, InfiLinX connects multiple compatible energy modules into one modular power system.

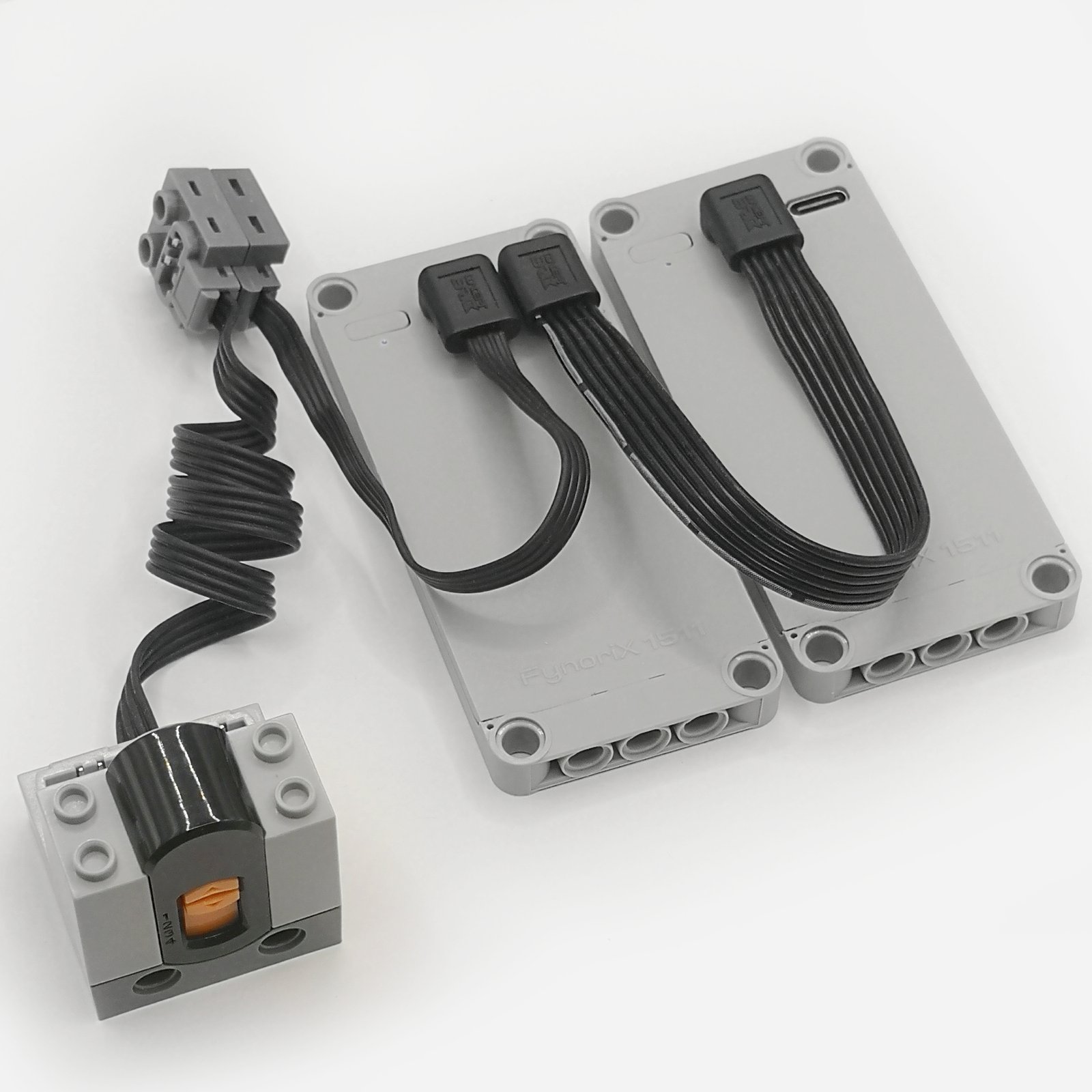

Designate one FynoriX1511 as the main power module, identified as P1, then connect additional modules in sequence:

P1 — InfiLinX — P2 — InfiLinX — P3 — and so on

Use the FynoriX PF Output Cable connected to P1 as the main output for the model:

Connected FynoriX1511 modules → P1 PF Output Cable → PF Switch / Receiver / Controller → Motor or Load

In this configuration, each additional FynoriX1511 increases total available battery capacity and extends runtime.

The regulated output remains 9 V, and the peak power available from the main PF output is not increased.

Compatibility

Currently Confirmed

• FynoriX1511 Power Brick

InfiLinX Ecosystem

InfiLinX is designed as a common connection framework for compatible modules within the expanding CONCEPTBRICK electrical ecosystem.

Compatibility and supported functions will be specified for each module as it is introduced.

Only connect products explicitly identified as InfiLinX-compatible. A matching physical connector alone does not confirm electrical or functional compatibility.

How to Use

1. Disconnect all modules from motors, controllers and external power sources.
2. Fully charge each FynoriX1511 separately through its own USB-C charging port.
3. Make sure all modules have a similar state of charge.
4. Designate one module as the main power module, P1.
5. Connect P2 to P1 using one InfiLinX cable.
6. Connect additional modules in sequence using one cable for each additional module.
7. Connect the FynoriX PF Output Cable from P1 to a PF-compatible switch, receiver or controller.
8. Connect the motor or load after the controller.
9. Switch on the system only after all connections have been completed.

Disconnect the system before changing its configuration, charging individual modules or storing the model.

For other InfiLinX-compatible products, follow the instructions supplied with the relevant module. The type of transmission provided by InfiLinX depends on the connected modules and may include power, control signals or other supported communication functions.

Do not use InfiLinX to charge any connected module.

Multi-Battery Safety

The following requirements apply when InfiLinX is used to connect multiple FynoriX1511 modules for capacity expansion:

• Use only FynoriX1511 modules in the same InfiLinX chain.
• Fully charge each module separately through its own USB-C charging port before connecting them.
• Make sure all connected modules have a similar state of charge.
• Use P1 as the main power output for the documented capacity-expansion configuration.
• Switch off and disconnect all modules before adding or removing an InfiLinX cable.
• Do not charge the modules while they are connected through InfiLinX.
• In this configuration, InfiLinX carries power between the modules but does not provide a charging function.
• Do not short, cut, splice or modify the cable.
• Do not use a cable with damaged insulation, connectors or contacts.

Disconnect the InfiLinX system and charge each FynoriX1511 separately through its own USB-C charging port.

Never connect another type of battery box, a USB-C to PF Adapter or an external power source to the same powered PF circuit.

Best Used For

• Expanding FynoriX1511 battery capacity
• Extending model operating time
• Dual-battery and multi-module configurations
• Distributing energy modules throughout compact models
• Replacing a lost or damaged InfiLinX cable

What’s Included

1 × InfiLinX Modular Connection Cable

FynoriX1511 modules, PF Output Cables, motors, controllers and other components shown in product images are not included.

Related Products and Support

• FynoriX1511 Power Brick
• FynoriX PF Output Cable
• FynoriX1511 Engineering Guide
• USB-C to PF Adapter

The USB-C to PF Adapter is an alternative external power solution. It must not be connected to the same powered PF circuit as a FynoriX1511 system.



FAQ

Q: What is InfiLinX, and is it only designed for FynoriX1511?
A: InfiLinX is a modular connection system developed for compatible components within the expanding CONCEPTBRICK electrical ecosystem. It is not limited to FynoriX1511, although connecting FynoriX1511 modules for capacity and runtime expansion is its current confirmed application.

Q: What can InfiLinX transmit?
A: Its function depends on the connected modules and configuration. InfiLinX may carry power or control signals, while future compatible applications may also support data transmission.

Q: Can InfiLinX charge connected modules?
A: No. InfiLinX is an interconnection interface, not a charging interface. Although it may carry power in supported configurations, each module must be charged through its own designated charging port.

Q: What does InfiLinX do when used with FynoriX1511?
A: InfiLinX carries power between connected FynoriX1511 energy modules, increasing total available battery capacity and extending runtime.

Q: Does InfiLinX increase the output voltage or motor power?
A: No. In the current FynoriX1511 configuration, the main PF output remains regulated at 9 V. InfiLinX does not increase the peak current or power available from that PF output.

Q: How can I increase the available startup power?
A: Use Multi-Battery Stacked PF Output. Connect each compatible FynoriX1511 using its own PF Output Cable, then stack the PF output connectors together. This allows multiple modules to contribute to the same PF circuit while the output remains regulated at 9 V.

Q: How many InfiLinX cables do I need?
A: One continuous FynoriX1511 chain requires one cable for each additional module. Two modules require one cable, three modules require two cables, and four modules require three cables.

Q: Is an InfiLinX cable included with FynoriX1511?
A: The Single Battery Set does not include an InfiLinX cable. The Dual Battery Set includes one cable. The 4PCs option consists of two Dual Battery Sets and therefore includes two cables. Connecting all four modules as one continuous chain requires three cables.

Q: How should I prepare FynoriX1511 modules before connecting them?
A: Fully charge each module separately through its own USB-C charging port and make sure all modules have a similar state of charge. Disconnect the InfiLinX system before charging any module.

Q: Can I connect any device with a matching connector?
A: No. Connect only products explicitly identified as InfiLinX-compatible. A matching physical connector alone does not confirm electrical or functional compatibility.

Q: Can I connect another battery box or external power source?
A: No. In the current FynoriX1511 configuration, never connect another type of battery box, a USB-C to PF Adapter or an external power source to the same powered PF circuit.
