USB-C/TypeC to Power Functions Adapter

Description

Overview

The USB-C/TypeC to Power Functions Adapter by CONCEPTBRICK is a compact 9V power adapter designed for LEGO Power Functions-style motors, lights, switches, extension wires, and compatible building block electronics.

It allows builders to power older Power Functions-style components from a compatible USB-C PD charger or USB-C PD power bank instead of relying only on a traditional AA / AAA battery box.

This adapter is especially useful for Technic MOCs, motor testing, train layouts, GBC modules, static displays, exhibition models, desk builds, lighting setups, and long-duration demonstrations where stable external power is more convenient than replacing batteries.

Quick Answer

Can you power LEGO Power Functions motors from a power bank?

Yes, if the power bank supports USB-C PD 9V output.

Standard 5V USB output is not suitable for LEGO Power Functions-style motors. This adapter is not a simple 5V USB cable. It requests a 9V Power Delivery profile from a compatible USB-C PD charger or power bank, then provides regulated 9V DC output through a Power Functions-compatible connector.

What Problem This Adapter Solves

Traditional Power Functions battery boxes are useful for fully mobile models, but they can be inconvenient in testing, display, and long-running setups.

Common problems include:

• Replacing AA or AAA batteries frequently
• Losing motor speed as batteries discharge
• Hiding a bulky battery box inside compact Technic frames
• Opening a model just to replace or recharge batteries
• Unstable behavior during long display operation
• Difficulty testing motors and mechanisms on a workbench

This USB-C to Power Functions Adapter provides a practical external power option for builders who want a stable 9V power path for compatible Power Functions-style systems.

Why a Normal 5V USB Cable Is Not Enough

Many USB ports and simple USB power cables only provide 5V output.

LEGO Power Functions-style motors and accessories are designed around a 9V power system. If a power source only provides 5V, the motor may run weakly, behave unpredictably, or not match the expected Power Functions performance.

This adapter is designed to work with USB-C PD power sources that support a 9V output profile.

Typical power path:

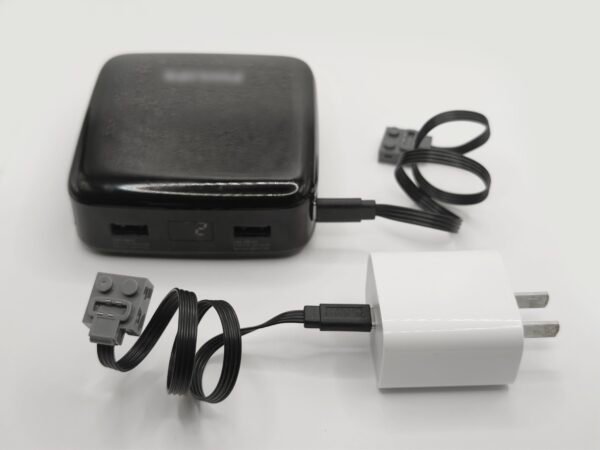

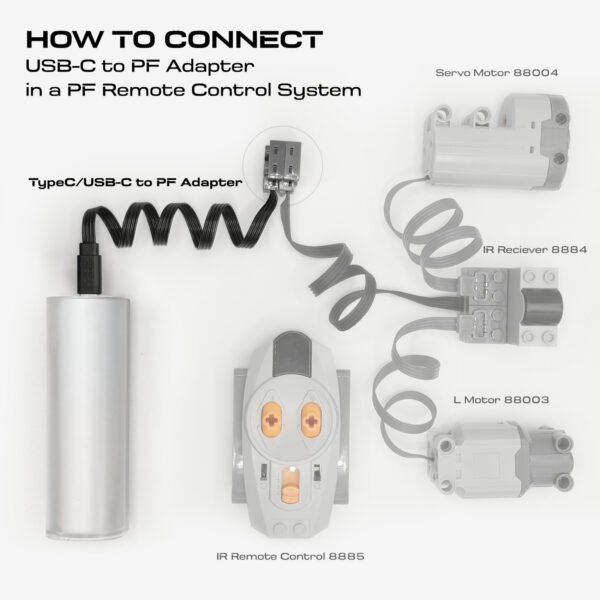

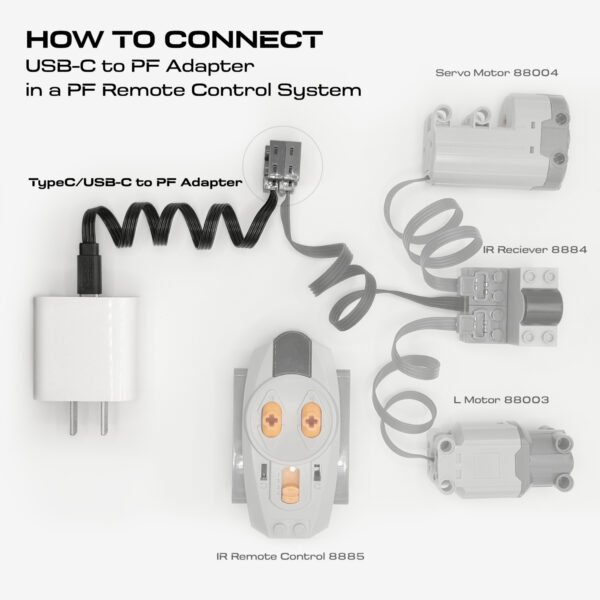

USB-C PD charger or power bank -> USB-C to Power Functions Adapter -> Power Functions-compatible motor, light, switch, receiver, or extension wire

What Power Bank or Charger Do I Need?

Use a USB-C PD charger or power bank that clearly supports 9V output.

Before use, check the label or specifications of your charger or power bank. Look for output information such as:

• 9V output support
• USB-C PD Power Delivery support
• 2A output capability recommended
• Good-quality USB-C cable and power source
• Stable output from a known and reliable brand

A standard 5V-only USB charger or power bank is not suitable for this adapter.

Key Features

Regulated 9V Power Output

The adapter provides regulated 9V DC output for Power Functions-style devices. Compared with traditional battery boxes, it can help keep motor speed and lighting behavior more consistent during testing and display use.

USB-C Power Delivery Input

The adapter is designed for USB-C Power Delivery power sources that support 9V output. A compatible USB-C PD charger or USB-C PD power bank is required.

Compact 30cm Cable Design

The approx. 30cm / 11.8in cable length gives builders flexibility when routing power through Technic frames, train layouts, compact MOC structures, and display bases.

Built-In Protection

The adapter includes over-current, over-voltage, and thermal protection for safer operation when used correctly with compatible Power Functions-style devices. It is also designed to meet CE, CPC, and RoHS safety and compliance standards.

Battery-Free Operation

For display models, workbench testing, lighting setups, and long-running MOCs, this adapter removes the need for frequent battery replacement.

Power Functions-Compatible Connector

The output side uses a Power Functions-style 2×2 connector, making it suitable for compatible PF motors, PF lights, PF extension wires, PF switches, and related building block electronics.

Best Use Cases

This adapter is especially suitable for:

• Technic MOC testing
• Power Functions motor experiments
• Static display models
• GBC modules
• Train layouts using compatible Power Functions-style components
• LED lighting setups
• Exhibition and showroom models
• Workbench mechanism testing
• Desk builds and long-duration demonstrations
• Models where the battery box is hard to access

Not Ideal For

This adapter is not designed for every LEGO electronic system or every high-load RC application.

It is not ideal for:

• Powered Up / Control+ motors
• SPIKE / Mindstorms / EV3 / NXT systems
• Waterproof or outdoor wet environments
• Heavy RC models with continuous high-current drivetrain loads
• Motors held in stall or near-stall conditions
• Unknown or incompatible third-party electronic systems
• Using multiple power supplies on the same PF line

Compatibility

Compatible with:

• LEGO Power Functions-style motors
• Power Functions-style lights
• Power Functions-style extension wires
• Power Functions-style switches
• Technic MOCs using compatible 2×2 PF-style connectors
• Compatible building block motor and lighting systems using the same PF-style connector layout

Not directly compatible with:

• LEGO Powered Up motors
• LEGO Control+ motors
• LEGO SPIKE hubs or motors
• LEGO Mindstorms EV3 / NXT motors
• Old 9V train track power without a separate compatible adapter
• Electronic systems using different connectors or communication protocols

Technical Specifications

Product Name	USB-C to Power Functions Adapter
Brand	CONCEPTBRICK
SKU	TCPFA30
Input Interface	USB-C
Required Input	USB-C PD power source capable of 9V output
Output Voltage	Regulated 9V DC
Maximum Output Current	2A
Output Connector	Power Functions-compatible plug
Cable Length	Approx. 30cm / 11.8in
Protection	Over-current, over-voltage, and thermal protection
Certifications	CE, CPC, RoHS compliant
Compatibility	Power Functions-style motors, lights, switches, extension wires, and accessories
Not Compatible With	Powered Up, Control+, SPIKE, EV3, NXT, or other systems using different connectors or control protocols
Recommended Use	Technic MOCs, motor testing, lighting systems, train layouts, GBC modules, exhibitions, displays, and workbench testing setups

USB-C Adapter vs Traditional Battery Box

USB-C to Power Functions Adapter:

• Uses a USB-C PD charger or power bank
• Provides regulated 9V DC output
• Good for testing, displays, lighting, trains, exhibitions, and fixed setups
• No AA / AAA battery replacement required
• Compact cable design saves space
• Requires an external USB-C PD power source

Traditional PF Battery Box:

• Uses AA / AAA batteries or a rechargeable battery box
• Voltage may drop as batteries discharge
• Good for fully mobile builds
• Adds weight and takes up internal space
• Requires battery replacement or recharging
• Fully portable without an external cable

Power Source and Load Notes

This adapter supports up to 2A maximum output current. This is a practical upper boundary for one PF power path, not a target for continuous overload operation.

For best reliability:

• Keep normal running current below the limit
• Avoid running several motors near stall at the same time
• Do not let motors remain blocked or stalled
• Avoid overloaded drivetrains and jammed mechanisms
• Use clutch gears or mechanical protection where needed
• Split large Technic builds into separate power zones
• Test the model under light load before long operation
• Stop use if the connector, cable, motor, or power source becomes unusually warm

If a USB-C PD power bank shuts off during use, the model may be drawing too much current. This can happen when multiple motors start at the same time, a drivetrain binds, a wheel gets stuck, or a linear actuator reaches its end stop. Reduce the load, check the mechanism, or split the model into separate power paths.

What This Product Is Not

This is not a Powered Up adapter.

This is not a Control+ adapter.

This is not a motor speed controller.

This is not a standard 5V USB cable.

This is not intended to bypass the electrical limits of Power Functions-style connectors.

It is a USB-C PD 9V power adapter for compatible Power Functions-style 2×2 connectors.

Typical Applications

Technic MOCs

Use the adapter to power compatible Technic motors during testing, tuning, and long-duration operation. It is useful for drivetrains, gearboxes, rotating structures, lifting mechanisms, and mechanical experiments.

Train Layouts and Moving Displays

For compatible Power Functions-style train layouts and moving displays, USB-C power can be more convenient than battery boxes, especially when the model runs for long periods.

GBC Modules

GBC modules often need stable power during continuous operation. This adapter can be useful for compatible Power Functions-style motors when the model is kept within the current limit.

Exhibition and Showroom Models

For public displays, showroom models, school projects, and model shows, external USB-C PD power can reduce battery maintenance and help keep models running more consistently.

LED Lighting Systems

The adapter can power compatible Power Functions-style lights in buildings, vehicles, trains, dioramas, and custom display scenes.

Workbench Testing

Builders can use the adapter to test motors, lights, and mechanisms before installing the final power system into a model.

Why Choose This Adapter?

Traditional battery boxes are useful for fully mobile models, but they add weight, take up space, and require battery replacement. This USB-C to Power Functions Adapter is a practical alternative for fixed models, test benches, and long-running displays.

• Reduces battery replacement during repeated testing
• Provides more consistent 9V power output
• Saves space inside compact MOCs
• Supports longer operation for displays and exhibitions
• Makes motor and mechanism testing easier
• Works with modern USB-C PD chargers and power banks

USB-C Adapter vs Traditional Battery Box

Feature	USB-C to Power Functions Adapter	Traditional Battery Box
Power Source	USB-C PD charger or power bank	AA / AAA batteries or rechargeable battery box
Output	Regulated 9V DC	Voltage may drop as batteries discharge
Best Use	Testing, display, exhibition, and fixed models	Fully mobile builds
Runtime	Depends on USB-C power source	Depends on battery capacity
Space Requirement	Compact cable setup	Requires battery box space
Maintenance	No battery replacement needed	Batteries must be replaced or recharged
Mobility	Requires external USB-C power source	Fully portable

Important Usage Notes

• A USB-C PD power source capable of 9V output is required.
• Standard USB-C chargers that do not support 9V PD output may not work correctly.
• Do not connect the USB-C plug to a power source while also connecting the Power Functions plug to another power supply device.
• Do not use the adapter if the plug, cable, or connector is damaged.
• Avoid motor stalling, short circuits, overloaded drivetrains, or incompatible electronic devices.
• This adapter is intended only for compatible Power Functions-style building block components.
• This product is not waterproof and should be used in dry indoor environments or protected display setups.

Power Source and Load Notes

• This adapter requires a USB-C Power Delivery power source that supports 9V output. Many USB-C PD chargers and power banks can provide 9V output, but compatibility may vary depending on the charger, power bank, cable quality, and connected load.
• For best results, use a reliable USB-C PD charger or power bank that clearly lists 9V output support. Standard USB-C chargers that only provide 5V output are not suitable for this adapter.
• The adapter supports up to 2A maximum output current. This is the maximum current limit, not a recommended continuous overload condition. Do not exceed 2A during use.
• High-current loads, multiple motors, stalled motors, heavy drivetrains, or blocked mechanisms may draw excessive current. If the current exceeds the rated limit, the metal contacts inside the Power Functions-style plug may generate heat. This can damage the plug, connector, cable, or connected components.
• Always test the model with a light load first. Stop using the adapter immediately if the connector, cable, motor, or power source becomes unusually warm. Reduce the load, check the drivetrain, remove stalled motors, or use fewer motors before testing again.
• This adapter is designed for Power Functions-style connectors only. Do not force the connector into incompatible ports. Always check the connector direction and system compatibility before use. Incorrect connection or use with unsupported systems may cause malfunction, overheating, or damage.

FAQ

Q: Can I power LEGO Power Functions motors with a power bank?

A: Yes, if the power bank supports USB-C PD 9V output. A standard 5V-only USB power bank is not suitable for Power Functions-style motors. This adapter requests a 9V PD profile from a compatible USB-C PD charger or power bank and outputs regulated 9V DC through a Power Functions-compatible connector.

Q: Can this adapter replace a LEGO Power Functions battery box?

A: Yes. For fixed models, display builds, exhibitions, train layouts, lighting setups, and workbench testing, this adapter can be used as a continuous power alternative to a traditional Power Functions battery box. For fully mobile builds, a battery box may still be more practical.

Q: Why does a normal USB cable not work with Power Functions motors?

A: Most normal USB outputs provide 5V. Power Functions-style motors are designed around a 9V system. A simple 5V USB cable cannot provide the correct voltage unless it includes proper voltage conversion or USB-C PD negotiation.

Q: What power source do I need?

A: You need a USB-C Power Delivery charger or power bank that supports 9V output. Check the printed specifications on your charger or power bank before use. A 9V / 2A capable USB-C PD power source is recommended for stable operation within the adapter’s rated limit.

Q: Does it work with LEGO Power Functions motors?

A: Yes. It is designed for Power Functions-style motors, lights, switches, extension wires, and compatible building block accessories that use the same PF-style 2×2 connector layout.

Q: Does it work with Powered Up or Control+?

A: No. This adapter is only compatible with Power Functions-style connectors. It is not directly compatible with Powered Up, Control+, SPIKE, EV3, NXT, or other systems that use different connectors or control protocols.

Q: What is the output voltage?

A: The adapter provides regulated 9V DC output for compatible Power Functions-style components.

Q: What is the maximum output current?

A: The maximum output current is 2A. This should be treated as the rated upper boundary for one PF power path, not a recommended continuous overload condition. For reliable long-term operation, keep the normal running load below the limit and avoid stalled motors.

Q: Can I connect multiple motors at the same time?

A: Yes, but the total load matters. The safe number of motors depends on motor type, gearing, drivetrain resistance, and mechanical load. Avoid stacking too many motors on one PF output path, and split large Technic builds into separate power zones when needed.

Q: Why does my power bank shut off when the model starts?

A: The model may be drawing more current than the power source or PF connector path can support. This can happen when several motors start at once, a drivetrain binds, a wheel gets stuck, or a linear actuator reaches its end stop. Reduce the load, check the mechanical system, or split the model into separate power paths.

Q: What happens if the load is too high?

A: A high load may cause voltage drop, power source shutdown, connector heating, or unstable motor behavior. Stop using the adapter, reduce the load, and check for stalled motors, blocked mechanisms, tight gears, or overloaded drivetrains before testing again.

Q: Is this adapter suitable for heavy RC models?

A: This adapter is better suited for display builds, testing, lights, trains, GBC modules, and moderate motorized Technic MOCs. Heavy RC models, stalled motors, or continuous high-load drivetrains may exceed the 2A rated limit and should use a properly planned power system.

Q: Can I use it for Technic MOCs?

A: Yes. It is suitable for Technic MOCs, especially motor testing, display models, gear mechanisms, rotating structures, lighting setups, and long-running demonstrations where external 9V power is more convenient than replacing batteries.

Q: Can I use it for train layouts?

A: Yes. It can be used for compatible Power Functions-style train layouts and moving displays, as long as the connected components stay within the adapter’s rated power limit.

Q: Can I use it for LED lights?

A: Yes. It can power compatible Power Functions-style LED lights for vehicles, buildings, trains, dioramas, and display scenes.

Q: Is this an official LEGO product?

A: No. This is a compatible building block accessory. LEGO is a trademark of the LEGO Group, which does not sponsor, authorize, or endorse this product.



*Requires chargers, power banks, and other power supply devices that support PD (Power Delivery) and can output 9V voltage, as shown in the diagram below:



LEGO® is a trademark of the LEGO Group, which does not sponsor, authorize, or endorse this product. For more information about LEGO products, please visit the official LEGO website.

This adapter is designed to work with USB-C Power Delivery (PD) power sources. Learn more about USB-C and Power Delivery standards from the USB Implementers Forum (USB-IF). For technical information about USB Power Delivery, you can also visit the USB-IF USB Power Delivery document library.

This product is designed for LEGO Power Functions systems only. It is not compatible with LEGO Powered Up, Control+, or third-party electronic systems.
